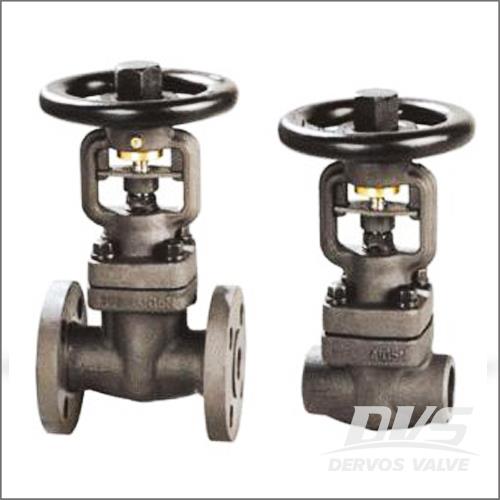

ISO 15761 BSP Gate Valve, A182 F51, NPS 1-2, 800 LB, ASME B16.34
Key Specifications / Features
Model No.: Hits: 129
China BSP Gate Valve Provider Offers ISO 15761 BSP Female Gate Valve, A182 F51 Body, 31803 Trim, NPS 1 - 2 Inch, Class 800 LB, ASME B16.34, Flanged.
Request a quoteTags:
Detail Infomation
Type: ISO 15761 BSP Gate Valve.
Body Material: A182-F51.
Trim Material: 31803.
Valve Size: 1 Inch, 2 Inch.
Pressure Rating: Class 800 LB.
Design: ISO 15761.
Pressure-temperature Rating: ASME B16.34.
Testing: API 598.
Connection: Flange or BSP Female.
Molding Style: Forging.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures.
Body Material: A182-F51.
Trim Material: 31803.
Valve Size: 1 Inch, 2 Inch.
Pressure Rating: Class 800 LB.
Design: ISO 15761.
Pressure-temperature Rating: ASME B16.34.
Testing: API 598.
Connection: Flange or BSP Female.
Molding Style: Forging.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures.
