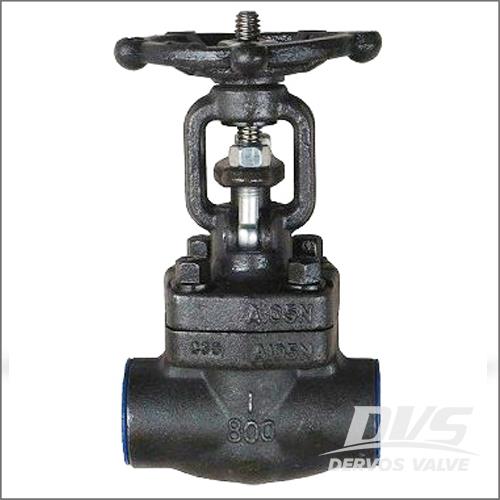

Forged Carbon Steel Gate Valve, NPS 1 Inch, CL800, SW, Handwheel
Key Specifications / Features
Model No.: Hits: 340
China Carbon Steel Gate Valve Factory Makes Forged Carbon Steel Gate Valve, NPS 1 Inch, CL800, SW, Handwheel, ASTM A105N Body/Bonnet, A276 420 Wedge.
Request a quoteTags:
Detail Information
Type: Forged Carbon Steel Gate Valve.
Body/Bonnet Material: ASTM A105N.
Wedge Material: A276 420.
Stem Material: A276 410.
Gasket Material: SS304+Graphite.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Molding Style: Forging.
DESIGN FEATURES
- Connection: SW.
- Outside Screw & Yoke (OS&Y).
- Bolted Bonnet.
- Full Bore.
- Handwheel Operating.
DESIGN STANDARD
- Design & manufacture according to API 602, ASME B16.34.
- End Connection according to ASME B16.11 (SW).
- Test & inspection according to API 598.
DIMENSIONS
Body/Bonnet Material: ASTM A105N.
Wedge Material: A276 420.
Stem Material: A276 410.
Gasket Material: SS304+Graphite.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Molding Style: Forging.
DESIGN FEATURES
- Connection: SW.
- Outside Screw & Yoke (OS&Y).
- Bolted Bonnet.
- Full Bore.
- Handwheel Operating.
DESIGN STANDARD
- Design & manufacture according to API 602, ASME B16.34.
- End Connection according to ASME B16.11 (SW).
- Test & inspection according to API 598.
DIMENSIONS
