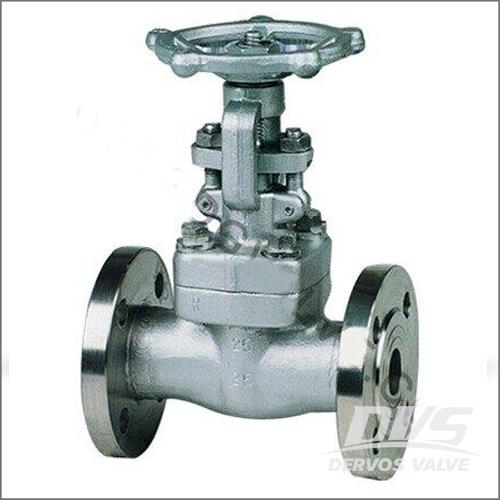

Forged Stainless Steel Gate Valve, PN25, F316, RF, DN10-DN100
Key Specifications / Features
Model No.: Hits: 50
PN25 Gate Valve Manufacturer In China Offers Forged Stainless Steel Gate Valve, PN25, F316 Valve Body, A276-316+STL Seat, RF, DN10-DN100.
Request a quoteTags:
Detail Information
Type: Forged Stainless Steel Gate Valve.
Body Material: F316.
Wedge/Seat Material: A276-316+STL.
Stem Material: A276-316.
Size: DN10 - DN100.
Pressure: PN25.
Molding Style: Forging.
Forging Tolerance: as Customer's Request.
Basic Info.

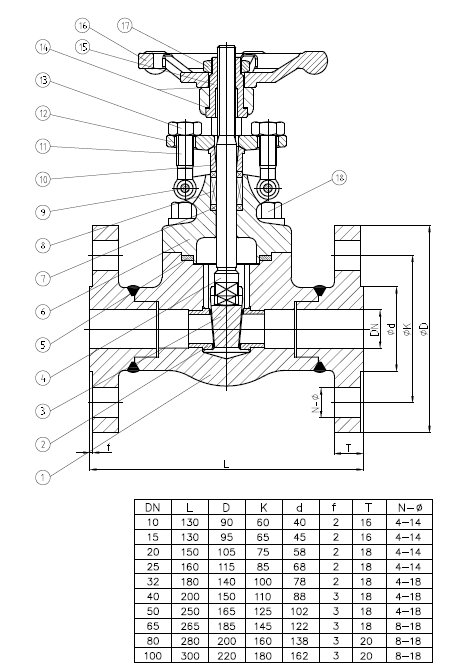

Design conform to BS5352.
Face to Face conform to EN558.
Flange dimension conform to EN1092.
Material conform to AISI/ASTM.
Test & Inspection conform to EN12266.
Origin: Zhejiang, China.
Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
Warranty Period: 18 months.
Tariff Code: 8481804090.
Body Material: F316.
Wedge/Seat Material: A276-316+STL.
Stem Material: A276-316.
Size: DN10 - DN100.
Pressure: PN25.
Molding Style: Forging.
Forging Tolerance: as Customer's Request.
DERVOS is your trusted source for the high quality gate valve, pn25, a105, rf. We're one of the leading valve manufacturers and suppliers in China, offering you the customized service. Welcome to contact with us for more details.
Basic Info.
Design conform to BS5352.
Face to Face conform to EN558.
Flange dimension conform to EN1092.
Material conform to AISI/ASTM.
Test & Inspection conform to EN12266.
Origin: Zhejiang, China.
Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
Warranty Period: 18 months.
Tariff Code: 8481804090.
