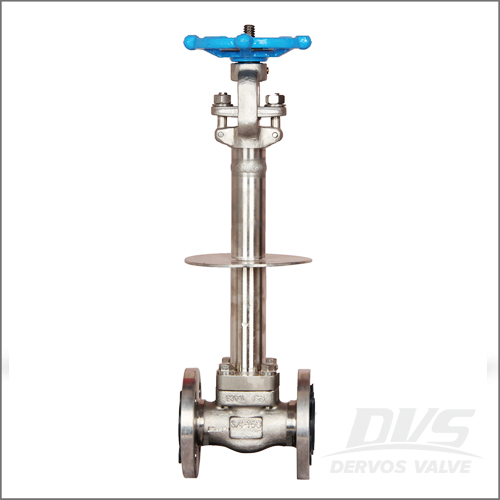

FORGED STAINLESS STEEL CRYOGENIC GATE VALVE - Outside Screw & Yoke (OS&Y), Integral Flange
Integral Flanged Cryogenic Gate Valve, F304L, Class 150, 3/4 Inch   Integral Flanged Cryogenic Gate Valve, F304L, Class 150, 3/4 Inch

STANDARD MATERIALS
PART NAMES MATERIALS
BODY F304; F304L; F316; F316L
BONNET F304; F304L; F316; F316L
SEAT ASTM A276 304(L) / 316(L) + HF
WEDGE ASTM A276 304(L) / 316(L)
STEM ASTM A276 304(L) / 316(L)
GASKET 304 + GRAPHITE
HANDWHEEL ASTM A197
PACKING GRAPHITE
GLAND ASTM A276 304(L) / 316(L)

SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.5.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Flanged Type
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
