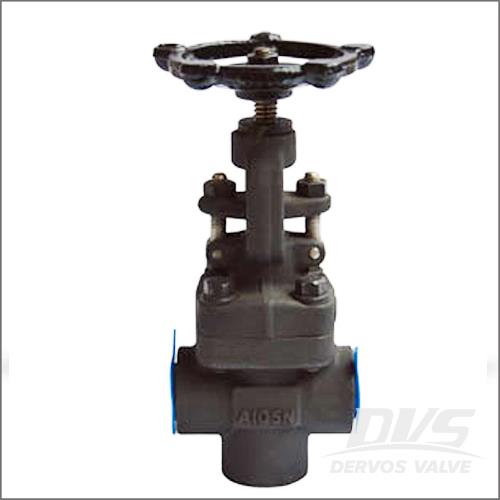

T-Joint Welded Globe Valve, A105N, 1 Inch, Class 800, T Pattern
Key Specifications / Features
Model No.: Hits: 56
China T Pattern Globe Valve Produce offers T-Joint Welded Globe Valve, A105N, 1/2-4 Inch, 150-1500 LB, T Pattern, Outside Screw & Yoke, Bolted Bonnet.
Request a quoteTags:
Detail Infomation
Quick Detail:
Type: T-Joint Welded Globe Valve.
Material: ASTM A105N.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
Type: T-Joint Welded Globe Valve.
Material: ASTM A105N.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, API 606, BS 5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
 |
PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. | |
| SEAT | ASTM A105 + HF | |
| DISC | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| GASKET | 304 + GRAPHITE | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 |
PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | 325 | - | 325 | |
| 300LB | 1125 | 825 | 825 | ||
| 600LB | 2225 | 1650 | 1650 | ||
| 800LB | 2975 | 2175 | 2175 | ||
| 900LB | 3350 | 2450 | 2450 | ||
| 1500LB | 5575 | 4100 | 4100 | ||
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Bolted Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
