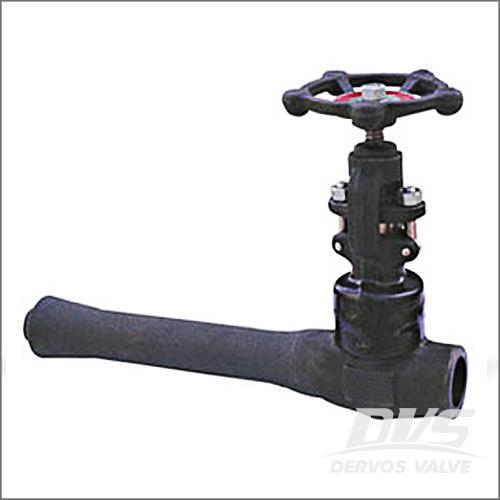

Integral Extended Body Globe Valve, ASTM A105N, 1 Inch, Class 800
Key Specifications / Features
Model No.: Hits: 40
China Extended Body Globe Valve Manufacturer Wholesales Integral Extended Body Globe Valve, ASTM A105N, 1 Inch, Class 800, Threaded, Butt-Welded.
Request a quoteTags:
Detail Infomation
Quick Detail:
Type: Integral Extended Body Globe Valve.
Material: ASTM A105N.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, BS5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: CLASS 150 LB - 2500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Welded Bonnet.
STANDARD MATERIALS
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded Or Butt-Welded
★ Outside Screw & Yoke, Welded Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
Type: Integral Extended Body Globe Valve.
Material: ASTM A105N.
Valve Size: 1 Inch.
Applicable Pressure Rating: Class 800 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, BS5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: CLASS 150 LB - 2500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Welded Bonnet.
STANDARD MATERIALS
 |
PART NAMES | MATERIALS |
| BODY | ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. | |
| BONNET | ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. | |
| SEAT | ASTM A105 + HF | |
| DISC | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 |
PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | 325 | - | 325 | |
| 300LB | 1125 | 825 | 825 | ||
| 600LB | 2225 | 1650 | 1650 | ||
| 800LB | 2975 | 2175 | 2175 | ||
| 900LB | 3350 | 2450 | 2450 | ||
| 1500LB | 5575 | 4100 | 4100 | ||
| 2500LB | 9275 | 6800 | 6800 | ||
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded Or Butt-Welded
★ Outside Screw & Yoke, Welded Bonnet
★ Reduce Bore / Full Bore
★ Non-Rising Stem / Rising Handwheel
