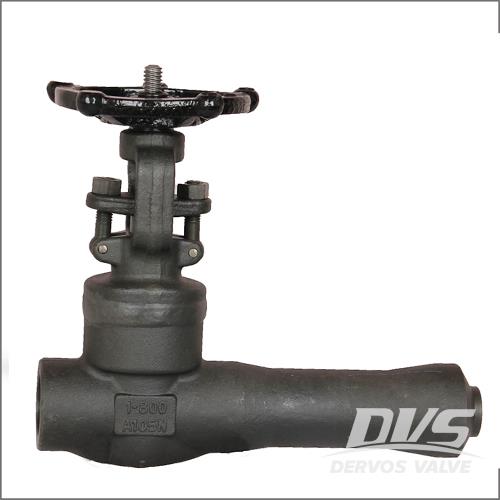

Threaded Forged Steel Gate Valve, A105N, 1/2-4 Inch, CL800-1500
Key Specifications / Features
Model No.: Hits: 158
Threaded Gate Valves Supplier in China offers Threaded Forged Steel Gate Valve, ASTM A105N, 1/2-4 Inch, Class 800-1500, Welded Bonnet, Extended Body.
Request a quoteTags:
Detail Infomation
Type: Threaded Forged Steel Gate Valve.
Material: A105N.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 800 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL EXTENDED GATE VALVE - Outside Screw & Yoke, Welded Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, API606, ASME B16.34/ B16.11/ B1.20.1.
Structure Features:
★ End Connection: Threaded or Socket-Welded Type.
★ Outside Screw & Yoke, Welded Bonnet.
★ Reduce Bore / Full Bore.
★ Rising Stem / Non-Rising Handwheel.
Material: A105N.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 800 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL EXTENDED GATE VALVE - Outside Screw & Yoke, Welded Bonnet.
STANDARD MATERIALS:
| PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| SEAT | ASTM A276 410 + HF |
| WEDGE | ASTM A276 420 |
| STEM | ASTM A276 410 |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 410 |
Design and Manufacture Conform to: API 602, API606, ASME B16.34/ B16.11/ B1.20.1.
Structure Features:
★ End Connection: Threaded or Socket-Welded Type.
★ Outside Screw & Yoke, Welded Bonnet.
★ Reduce Bore / Full Bore.
★ Rising Stem / Non-Rising Handwheel.
