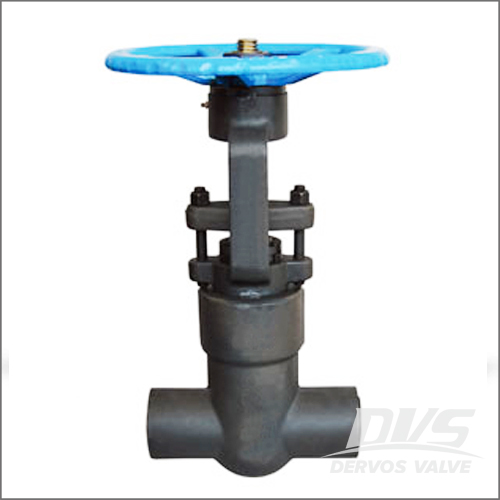

Pressure-Seal Bonnet Gate Valve, ASTM A105N, Class 2500, 1 Inch
Key Specifications / Features
Model No.: Hits: 39
China Forged Steel Gate Valve Manufacturer Wholesales Forged Pressure-Seal Bonnet Gate Valve, ASTM A105N, Class 2500, 1 Inch, Reduce Bore / Full Bore.
Request a quoteTags:
Detail Infomation
FORGED STEEL PRESSURE-SEAL GATE VALVE
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25
⑵ Valve Size: 1/2 Inch - 4 Inch
⑶ Applicable Rating: Class 1500 LB - 2500 LB
⑷ Temperature Rating: Up to 500℃
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Pressure-Seal Bonnet
★ Reduce Bore / Full Bore
★ Rising Stem / Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
| SEAT | ASTM A276 410 + HF |
| WEDGE | ASTM A276 420 |
| STEM | ASTM A276 410 |
| P.S SEAT | 304 SS |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 410 |
| PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | |
| WATER | WATER | AIR | WATER | |
| 1500LB | 5575 | 4100 | 90 | - |
| 2500LB | 9275 | 6800 | - | 6800 |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25
⑵ Valve Size: 1/2 Inch - 4 Inch
⑶ Applicable Rating: Class 1500 LB - 2500 LB
⑷ Temperature Rating: Up to 500℃
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Outside Screw & Yoke, Pressure-Seal Bonnet
★ Reduce Bore / Full Bore
★ Rising Stem / Non-Rising Handwheel
