Forged Full Port Globe Valve, ASTM A105, 1/2-2 Inch, 150 LB
Key Specifications / Features
Model No.: Hits: 68
China Full Port Globe Valve Manufacturer Produces Forged Full Port Globe Valve, ASTM A105, 1/2-2 Inch, Class 150 LB, Gas, Steam & Oil Control Globe Valve.
Request a quoteTags:
Detail Infomation
Type: Forged Full Port Globe Valve.
Body Material: ASTM A105.
Disc Material: A276-420.
Stem Material: A276-410.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
Product Details:
A Globe Valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. The Forged Steel Globe Valve is suitable for gas, steam and oil products. the maximum operating temperature is 550°C.
Basic Info:
◆ Design Conform To API 602, ASME B16.34
◆ Face To Face Conform To ASME B16.10
◆ Flange Dimension Conform To ASME B16.5
◆ Material Conform To AISI/ASTM
◆ Test & Inspection Conform To API 598
◆ Operation: Handwheel.
◆ Structure: OS&Y.
◆ Port: Full Port.
◆ Media: Gas, Oil And Steam.
◆ Origin: Zhejiang, China
◆ Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate Etc
◆ Payment Terms: 30% T/T WHEN ORDER,70% T/T BEFORE SHIPMENT
◆ Warranty Period: 18 Months
◆ Tariff Code: 8481804090

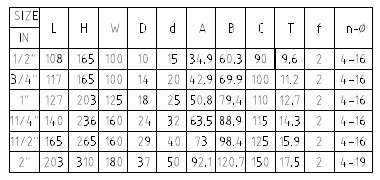

◆ Dimensions
Body Material: ASTM A105.
Disc Material: A276-420.
Stem Material: A276-410.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
Product Details:
A Globe Valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. The Forged Steel Globe Valve is suitable for gas, steam and oil products. the maximum operating temperature is 550°C.
Basic Info:
◆ Design Conform To API 602, ASME B16.34
◆ Face To Face Conform To ASME B16.10
◆ Flange Dimension Conform To ASME B16.5
◆ Material Conform To AISI/ASTM
◆ Test & Inspection Conform To API 598
◆ Operation: Handwheel.
◆ Structure: OS&Y.
◆ Port: Full Port.
◆ Media: Gas, Oil And Steam.
◆ Origin: Zhejiang, China
◆ Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate Etc
◆ Payment Terms: 30% T/T WHEN ORDER,70% T/T BEFORE SHIPMENT
◆ Warranty Period: 18 Months
◆ Tariff Code: 8481804090
◆ Dimensions
