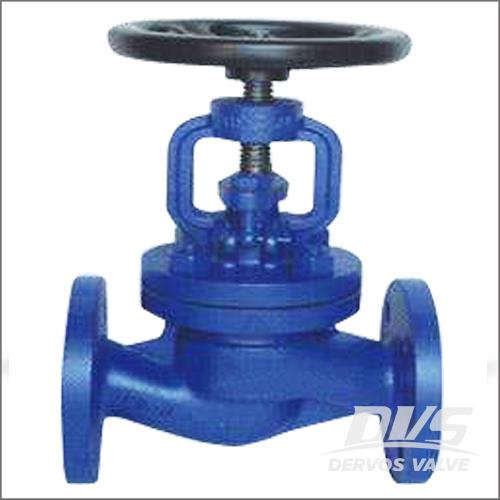

BS 1873 Forged Steel Globe Valve, ASTM A105, DN50, PN25, RF
Key Specifications / Features
Model No.: Hits: 82
China BS 1873 Globe Valve Supplier Offers BS 1873 Forged Steel Globe Valve, ASTM A105, DN50, PN25, RF, OS & Y, Full Bore Structure, Handwheel Operated.
Request a quoteTags:
Detail Infomation
Type: BS 1873 Forged Steel Globe Valve.
Body Material: ASTM A105.
Trim Material: A276-410, A276-420.
Valve Size: DN50.
Pressure Rating: PN25.
Molding Style: Forging.
The Globe Valves are primarily used to modulate or regulate the volume of the flow. A globe valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop.

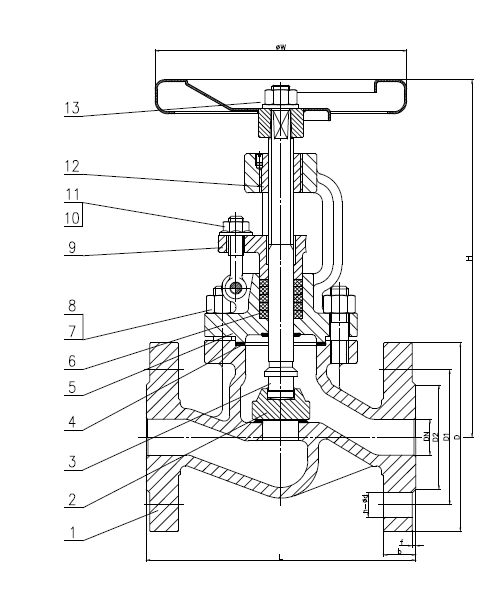

Inherent Design of a Globe Valve.
Design Features:
Design In Accordance With BS 1873.
Flange Dimensions In Accordance With BS 4504.
Test In Accordance With BS 5146.
Operation: Handwheel.
Structure: OS & Y, Full Bore.
Warranty Period: 18 Months
Country Of Origin: China
The main advantages of steel forging are as follow:
*Economical: The process uses material economically and large amount of material is saved.
*Impact Strength: The parts manufactured can virtually cope up with the stress, load and impact.
*Product Efficiency: Using steel forging process can result in production of many different sizes. products that are more flexible and more efficiently can be produced.
Body Material: ASTM A105.
Trim Material: A276-410, A276-420.
Valve Size: DN50.
Pressure Rating: PN25.
Molding Style: Forging.
The Globe Valves are primarily used to modulate or regulate the volume of the flow. A globe valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop.
Inherent Design of a Globe Valve.
Design Features:
Design In Accordance With BS 1873.
Flange Dimensions In Accordance With BS 4504.
Test In Accordance With BS 5146.
Operation: Handwheel.
Structure: OS & Y, Full Bore.
Warranty Period: 18 Months
Country Of Origin: China
The main advantages of steel forging are as follow:
*Economical: The process uses material economically and large amount of material is saved.
*Impact Strength: The parts manufactured can virtually cope up with the stress, load and impact.
*Product Efficiency: Using steel forging process can result in production of many different sizes. products that are more flexible and more efficiently can be produced.
