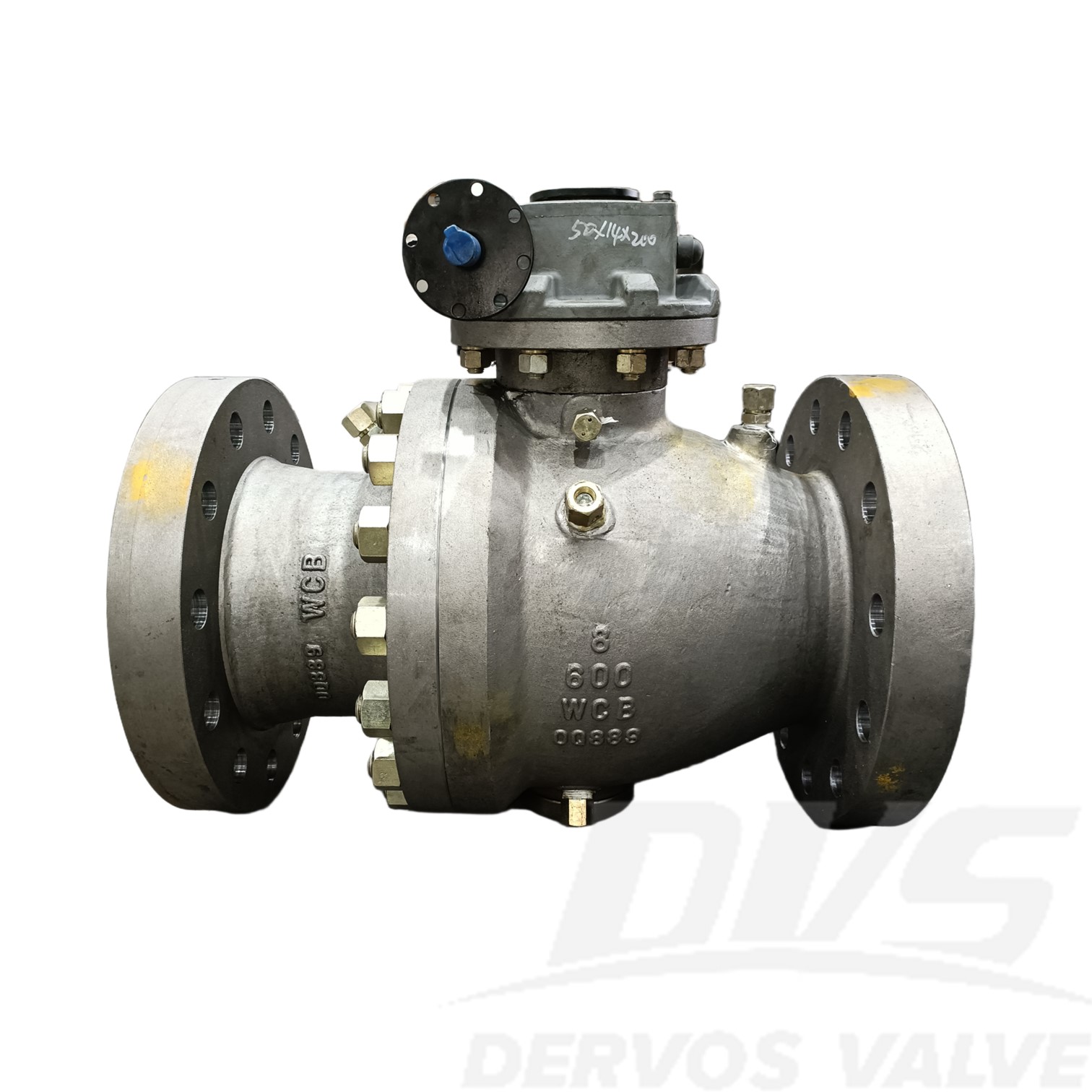

Cast Steel Trunnion Ball Valve, WCB, 8 Inch, Class 600, API 6D

China Trunnion Ball Valves Manufacturer Offers Cast Steel Trunnion Ball Valve, WCB, 8 Inch, Class 600, API 6D, Full Bore, Trunnion Mounted Ball, Fire-Safe and Anti-Static, Blow-Out Proof Stem.

Type: Cast Steel Trunnion Ball Valve.

Body Material: A216-WCB.

Seat Material: RPTFE.

Material Std.: API 6D.

Valve Size: 8 - 10 Inch.

Applicable Pressure Rating: Class 600 LB.

Molding Style: Casting.



● Design conform to API 6D

● Face to Face conform to ASME B16.10

● Flange dimension conform to ASME B16.5

● Test & Inspection Standard: API 6D

● Type: Trunnion Ball



● Origin: Zhejiang, China

● Molding Style: Casting

● Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate etc

● Warranty Period: 18 months

● HS Code: 8481804090

technical drawing.png
