PRODUCTS > Forged Steel Globe Valve, A105N, 1/2 - 2 Inch, Class 800 LB, NPT
  • FB14.jpg
    • 1

Forged Steel Globe Valve, A105N, 1/2 - 2 Inch, Class 800 LB, NPT

Model No.: Hits: 190
China 2 Inch Globe Valve Manufacturer Offers Forged Steel Globe Valve, AISI/ASTM A105N Body, A182 F6a Disc/Stem, 1/2 - 2 Inch, Class 800 LBs, NPT.
Request a quote

Type: Forged Steel Globe Valve.
Material Standard: AISI/ASTM.
Body Material: A105N.
Disc/Stem Material: A182 F6a.
Valve Size: 1/2 - 2 Inch.
Pressure Rating: Class 800 LB.
Molding Style: Forging.


The Forged Steel Globe valves are constructed by a high integrity forged body with a bolted bonnet. The range offers secure sealing at mid-range pressure classes and elevated temperatures. Packing types include flexible graphite or PTFE. This design is suitable for a wide range of applications.


★Design & Manufacture Standard: API 602.
★NPT Dimension Standard: ANSI B1.20.1.
★Test & Inspection Standard: API 598.

★Connection: NPT.
★Operation: Handwheel.
★Structure: OS*Y

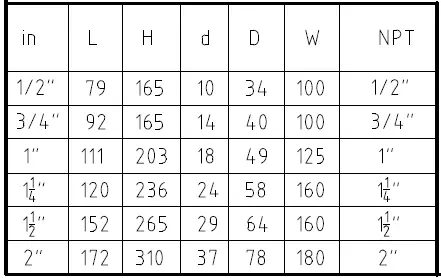

★Dimensions:

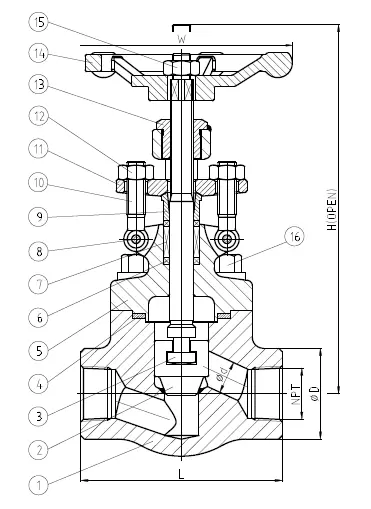

★Technical Drawing:


★Origin: Zhejiang, China
★Certification: ISO 9001:2008, API602, API 608, DNV/CE Certificate, API 607 Fire Safe Certificate etc
★Warranty Period: 18 months
★Tariff Code: 8481804090
